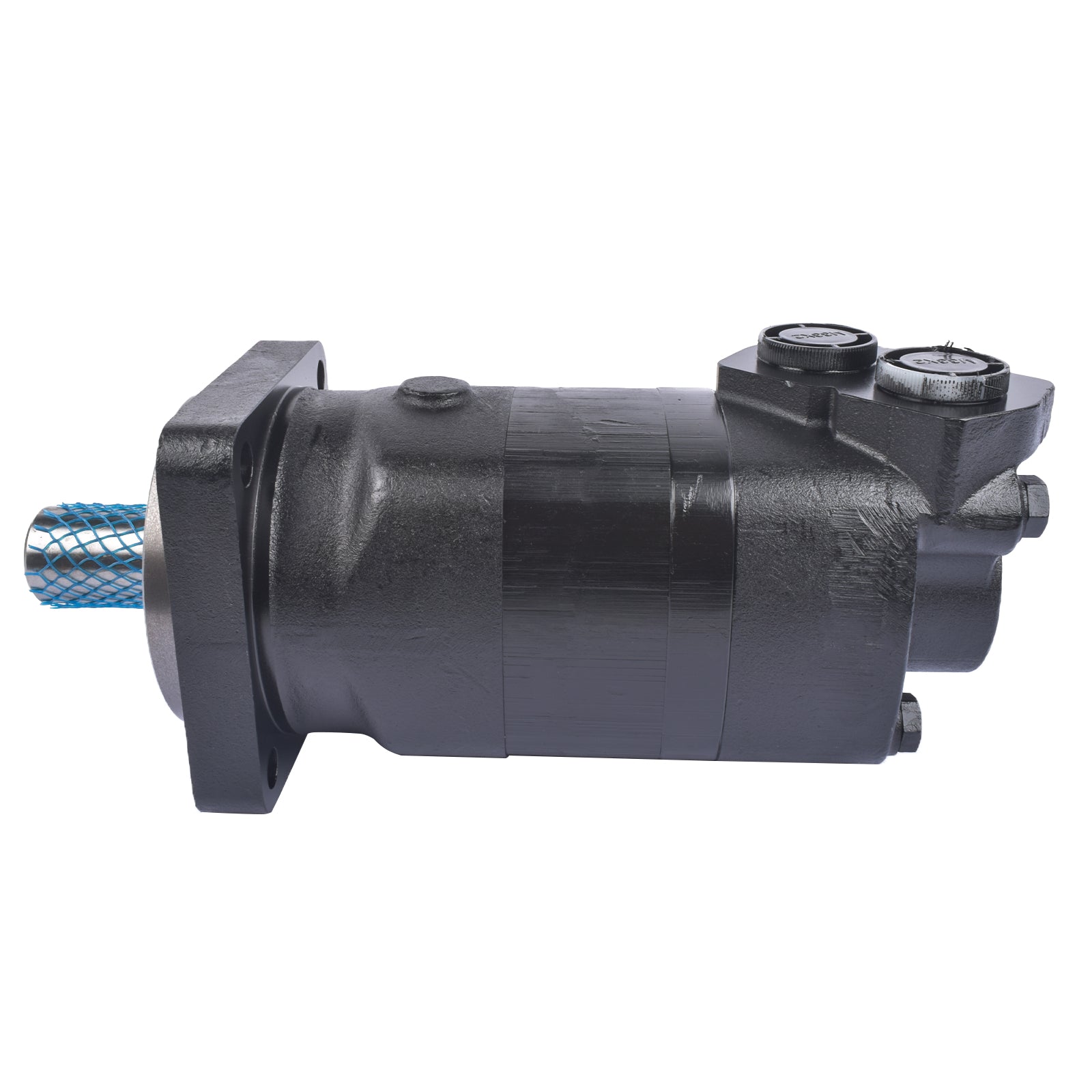

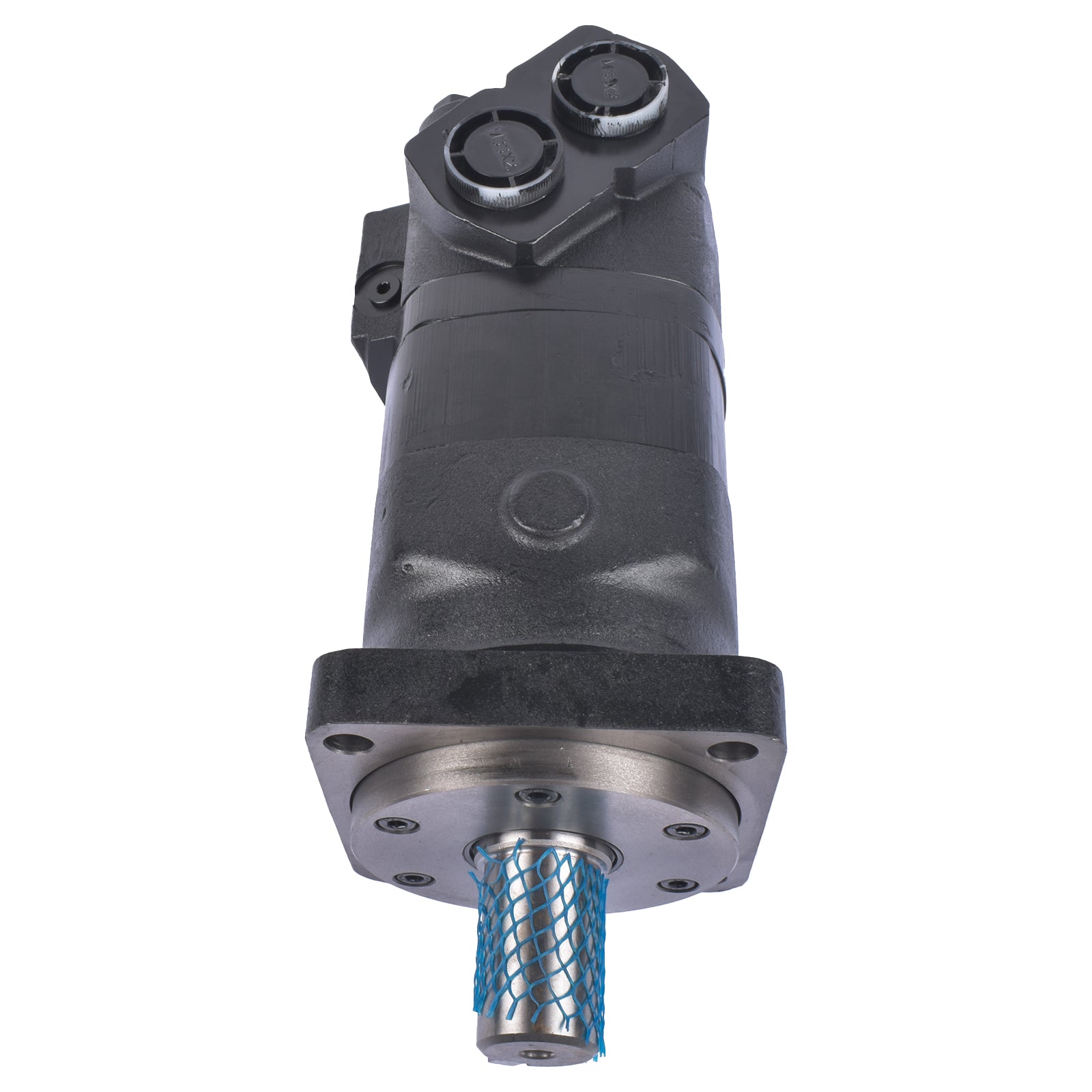

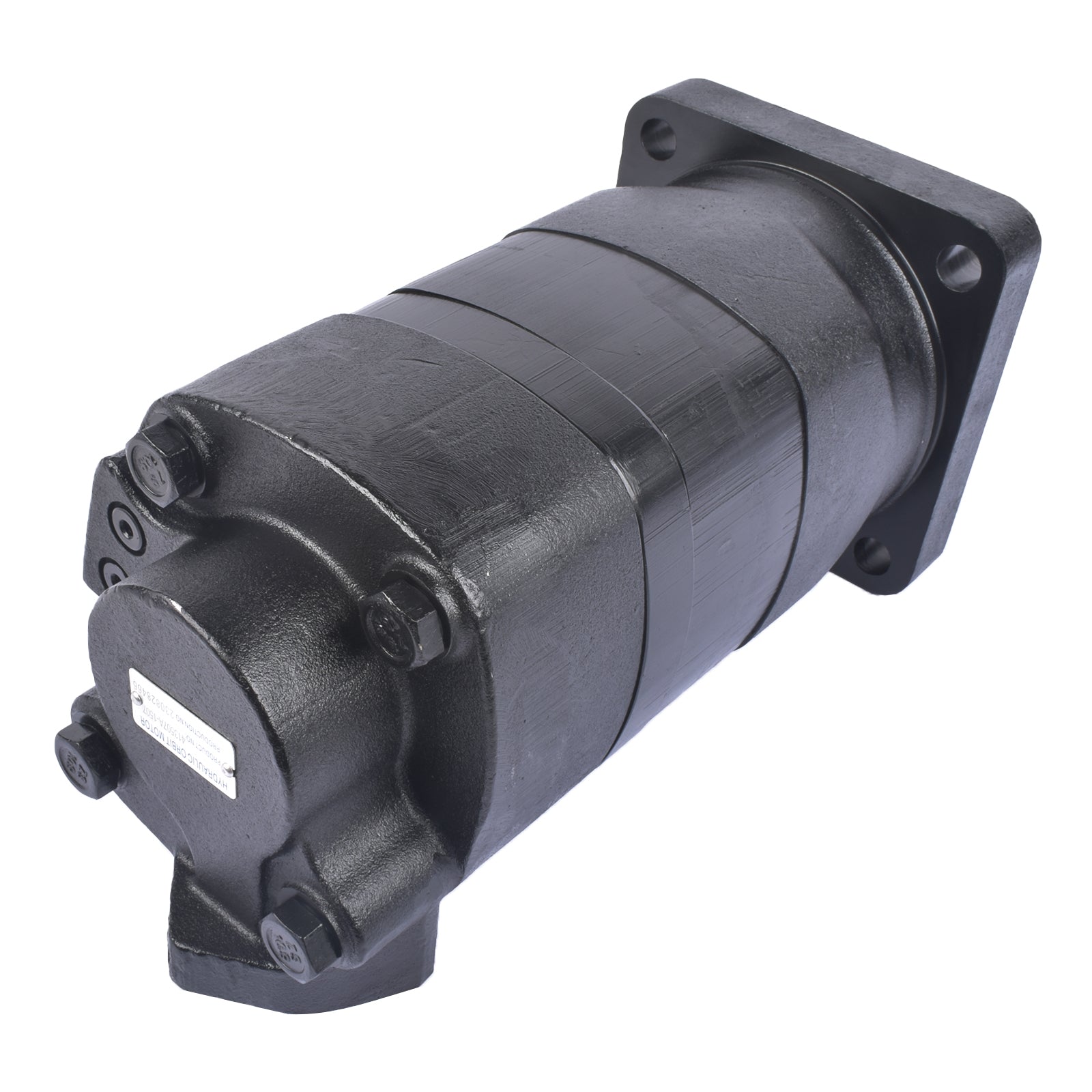

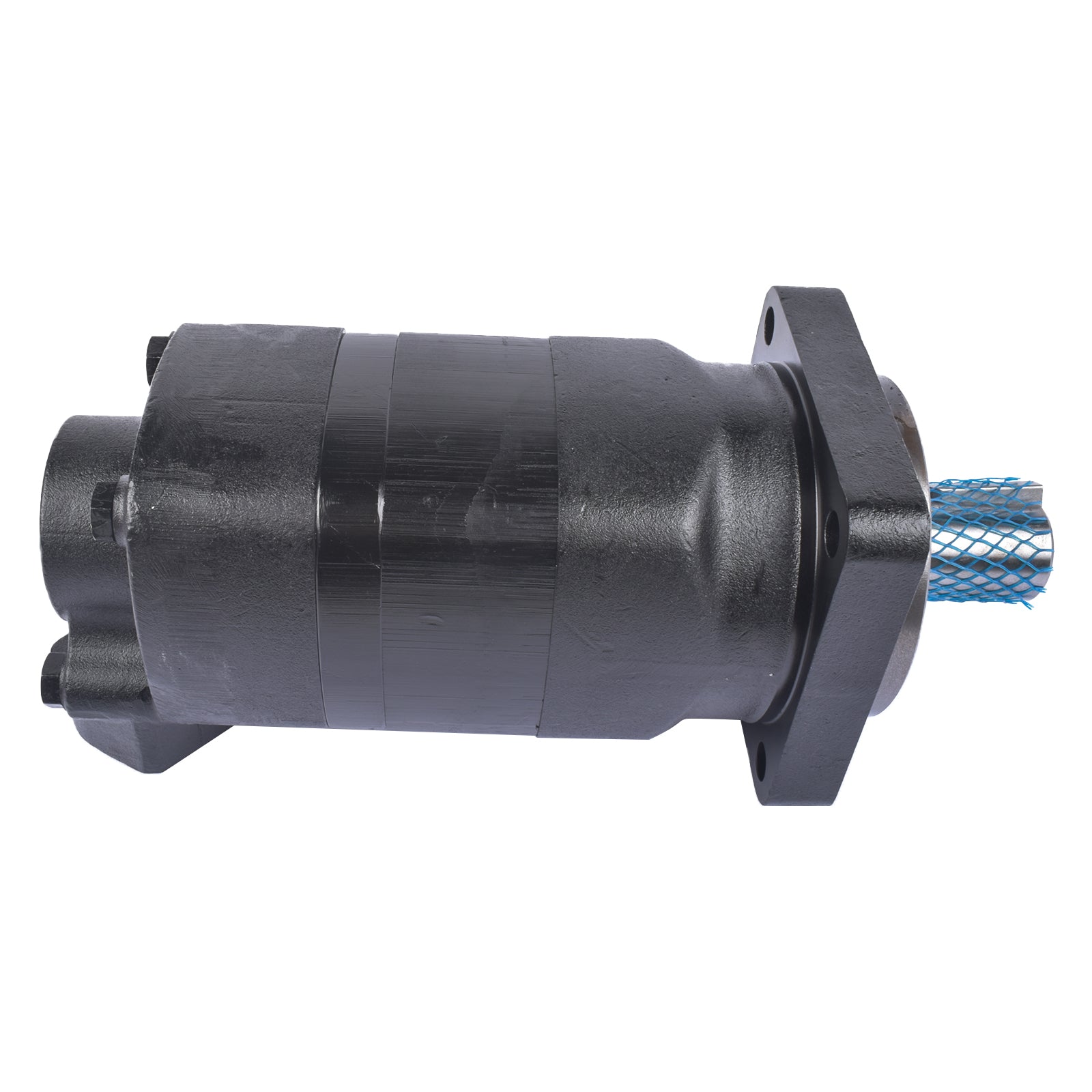

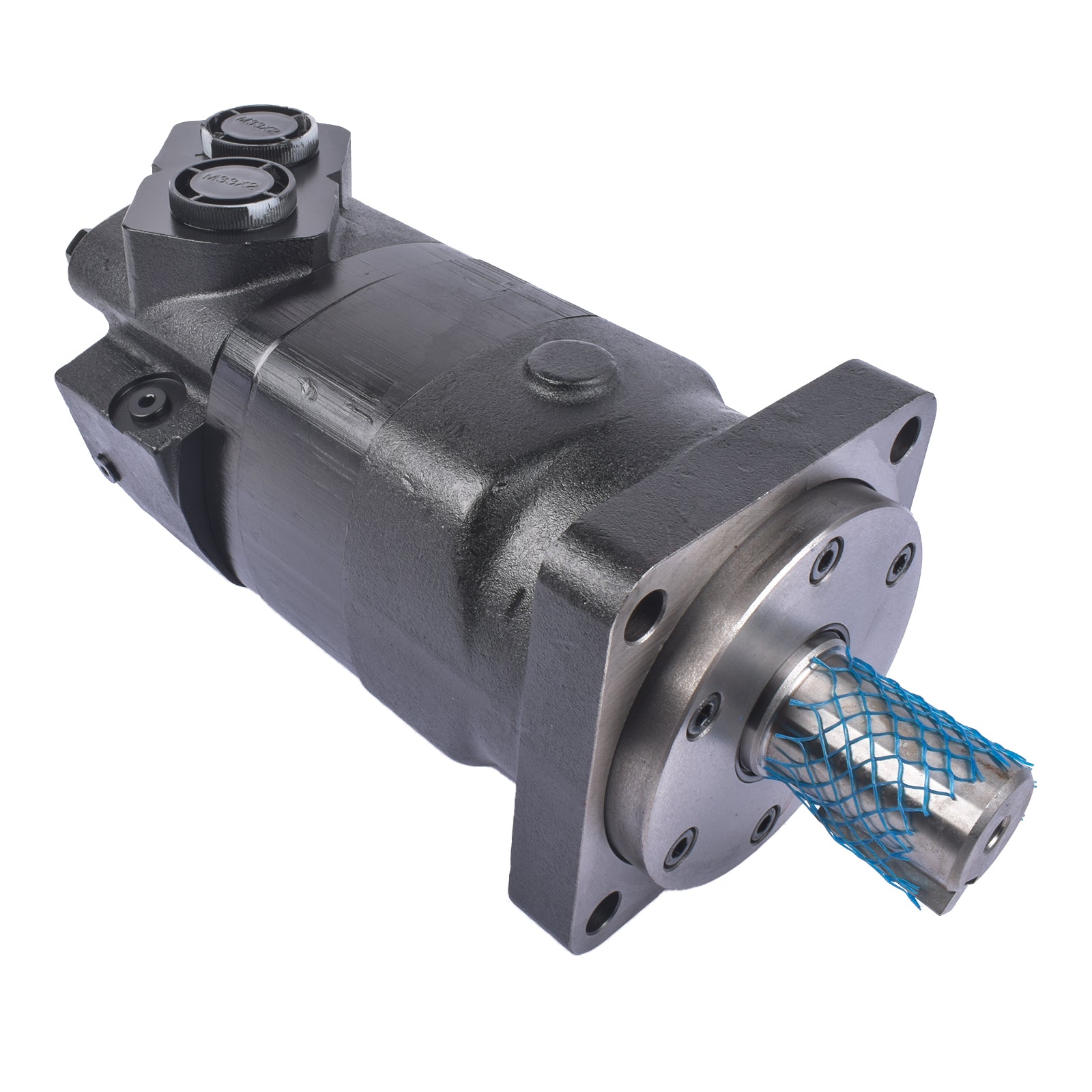

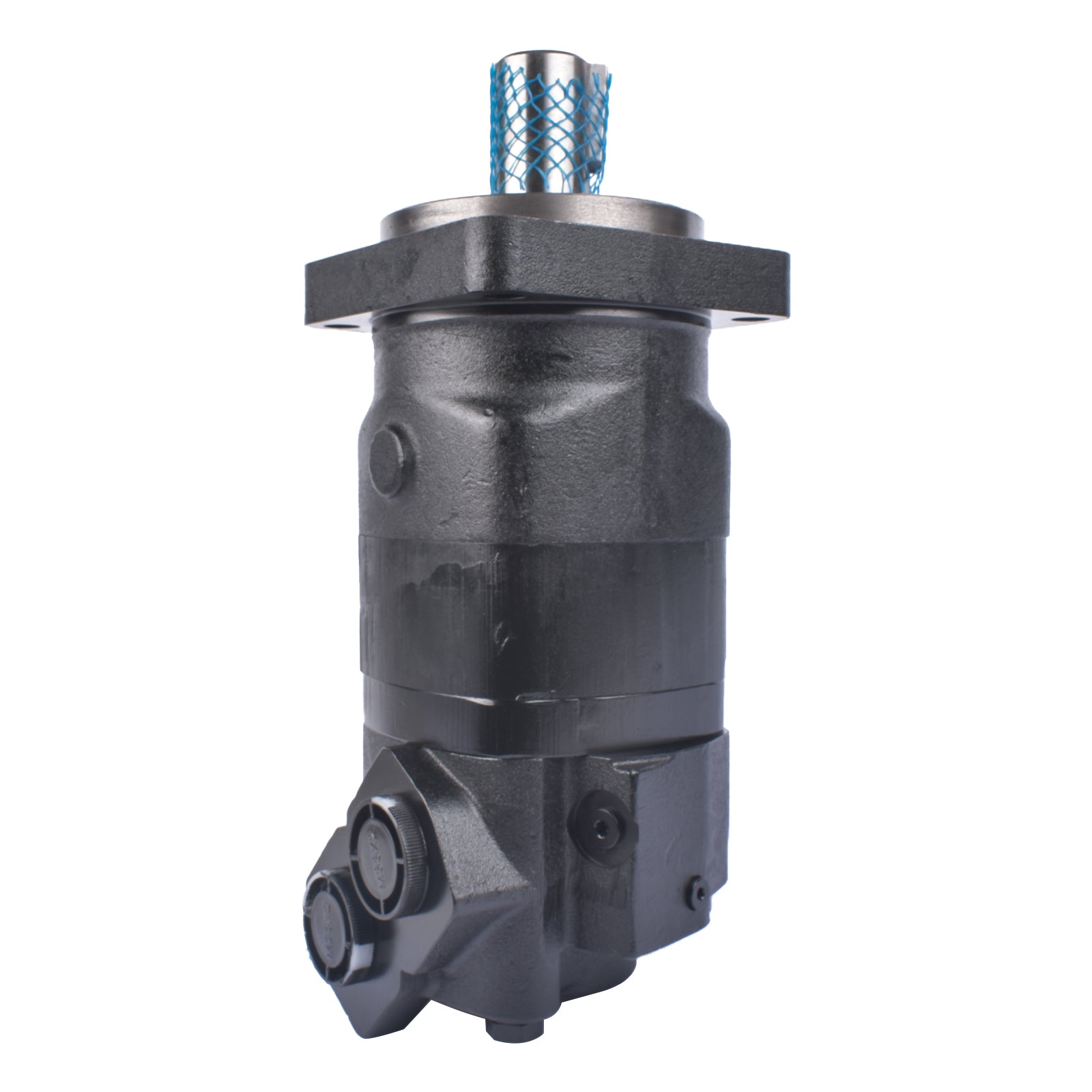

Hydraulic Motor 112-1068-006 112-1068 Fits For Eaton Char-Lynn: 6000 Series 4 Bolt

OE Number

112-1068-006, 1121068006, 112-1068, 1121068

Will fit Following Models

Fit for Eaton Char-Lynn: 6000 Series

Specifications:
SERIES: 6000 SERIES
Displacement: 491.4 Cm3/r [29.99 In3/r]
Output Shaf : 38.10 [1.500] Dia. Straight Shaft With .375-16 Unc-2b Thread In End; 9.52 [.375] Sq X 41.28 [1.625] Straight Key
Mounting Type: Standard; (Sae Cc); 4 Bolt; 127.0 [5.00] Pilot Dia. 14.35 [.565] Dia. Holes On 162.0 [6.38] Dia. Bolt Circle
Ports: 1.3125-12 Un-2b Sae O-ring Ports - Staggered Ports
Case Flow Options: .4375-20 Unf-2b Sae O-ring Port With Check Valve
Color: Black

Note: To ensure you order the correct part, please check if the number of your previous part is exactly the same as the number(s) stated in the listing.

Package Includes:

1x Hydraulic Motor
