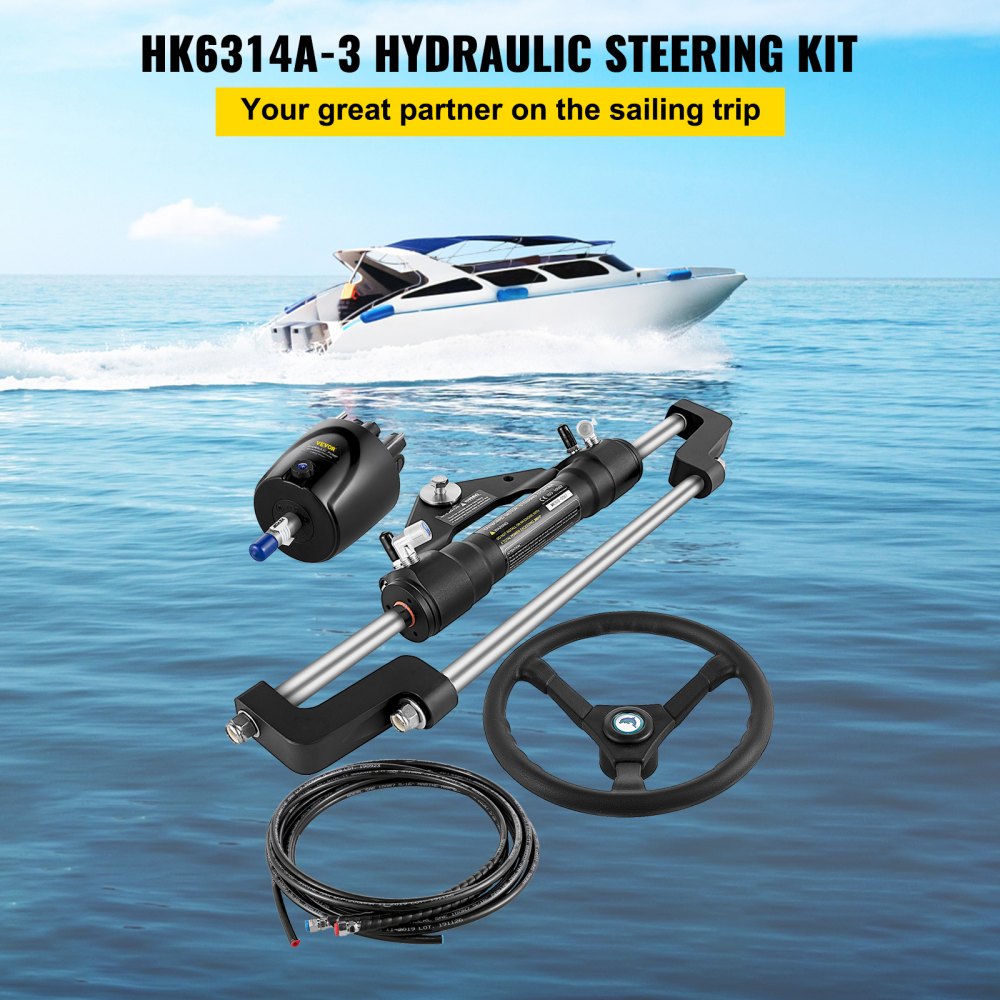

300HP Hydraulic Outboard Steering Kit
Robust and Sleek & Positional ORB`s & Sealing System
steering kit, including a cable, a pump, a cylinder, and a steering wheel, is ideal for cruisers, runabouts, center console boats, offshore fishing boats, and many more. The balanced, compact steering system comes with everything needed for easy installation.
-
Hydraulic Outboard Boat Steering Kit -
Aluminum Alloy Steering Cylinder -
Max. 300HP Helm Pump -
Nylon Hose & Steering Wheel -
Great Partner for Your Boat

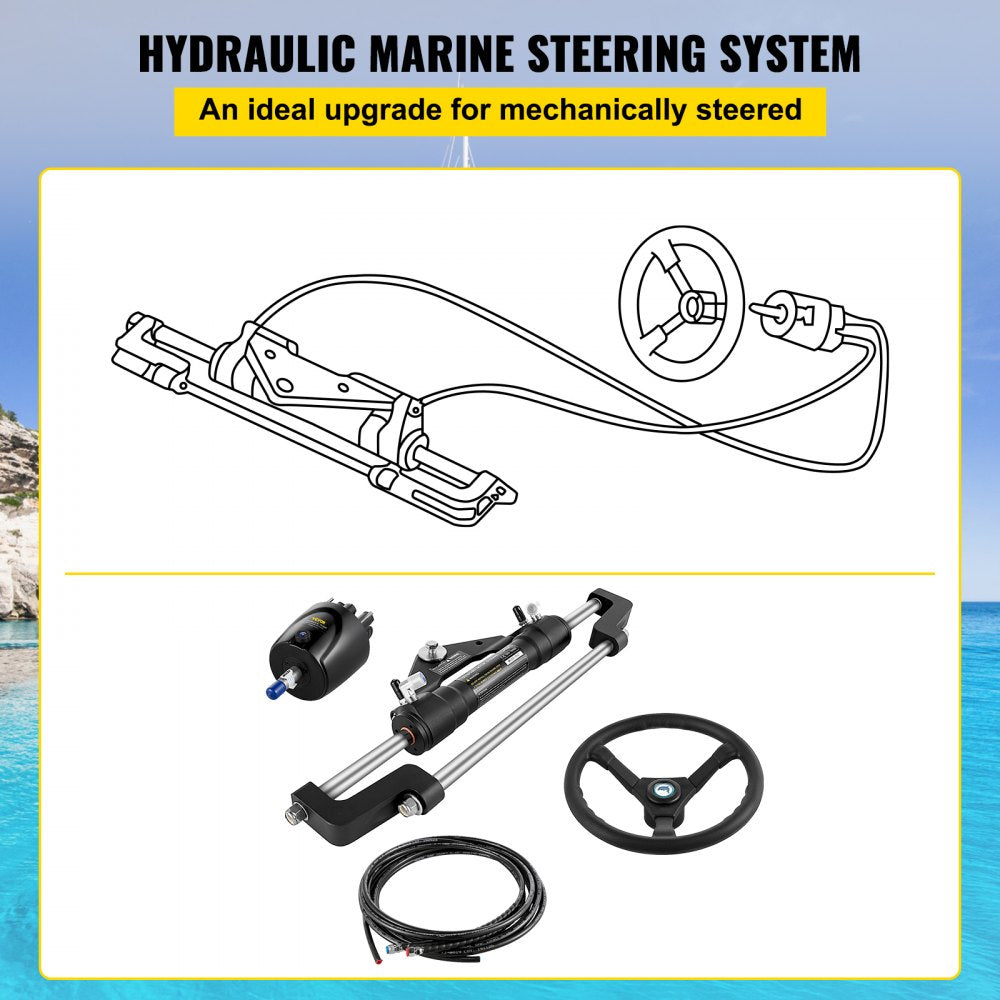

A Complete Hydraulic Directional System
The hydraulic outboard boat steering kit is suitable for most outboards with cylinder, helm, 14ft hose kit.

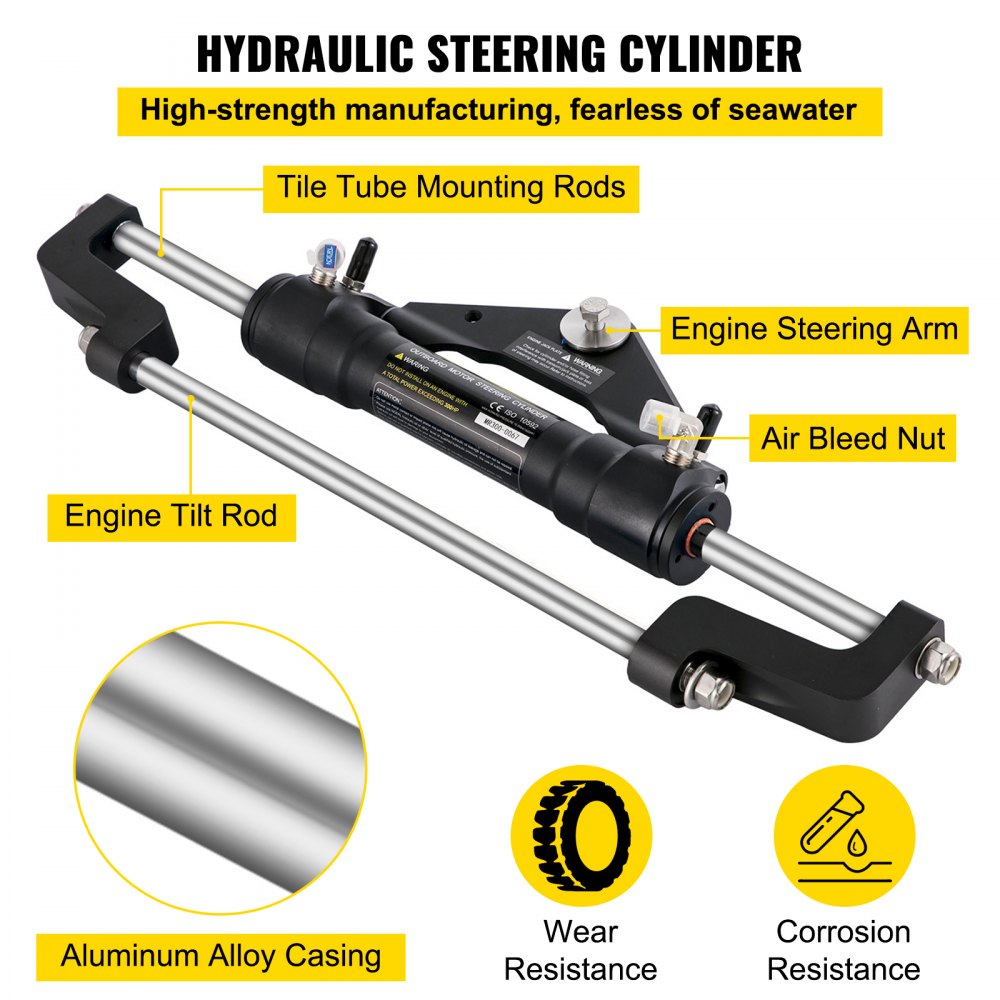

Robust and Sleek Cylinder
The stainless steel O-ring (ORB) fitting is for easy hose routing. And robust barrel design and the sealing system can withstand the harsh environment.

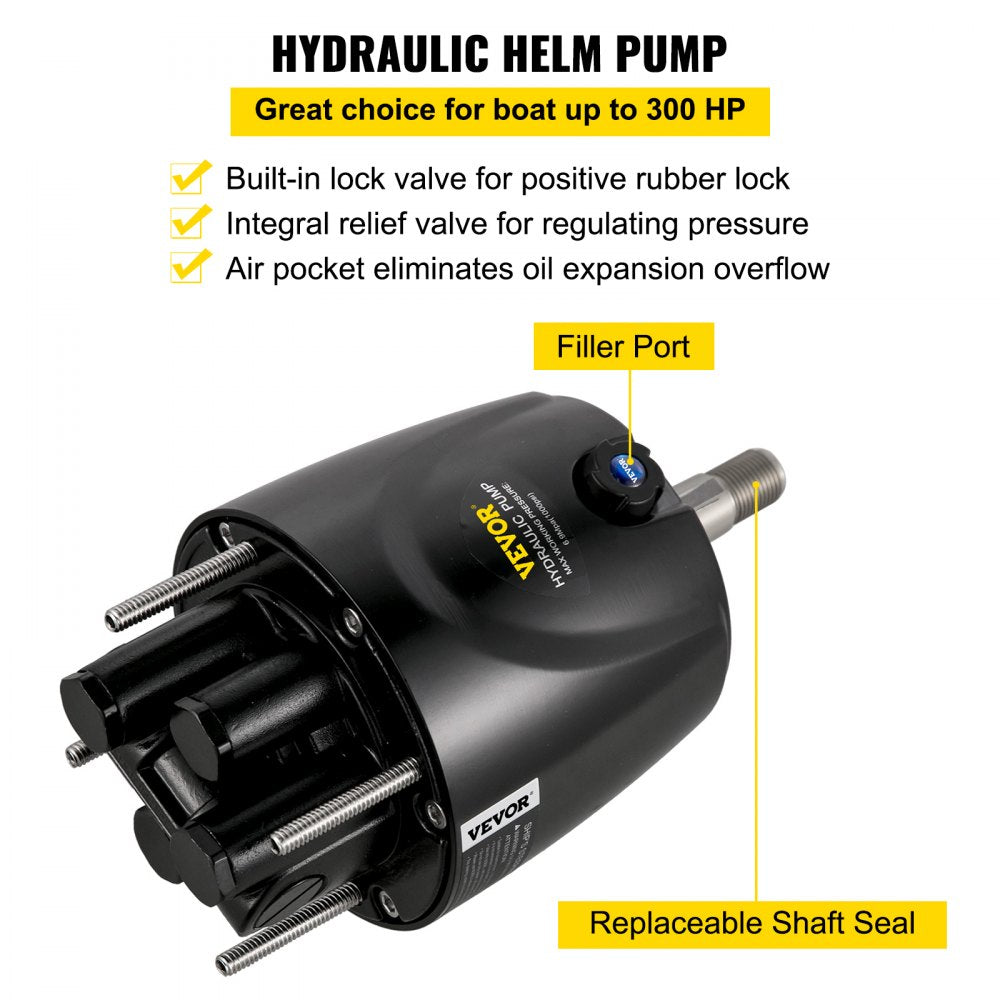

Efficient Helm
The helm max. working pressure is 6.9 Mpa/1000psi. It comes with a replaceable shaft seal to protect fluid from leaking. The ORB fittings are for easy hose routing and quick assembly.

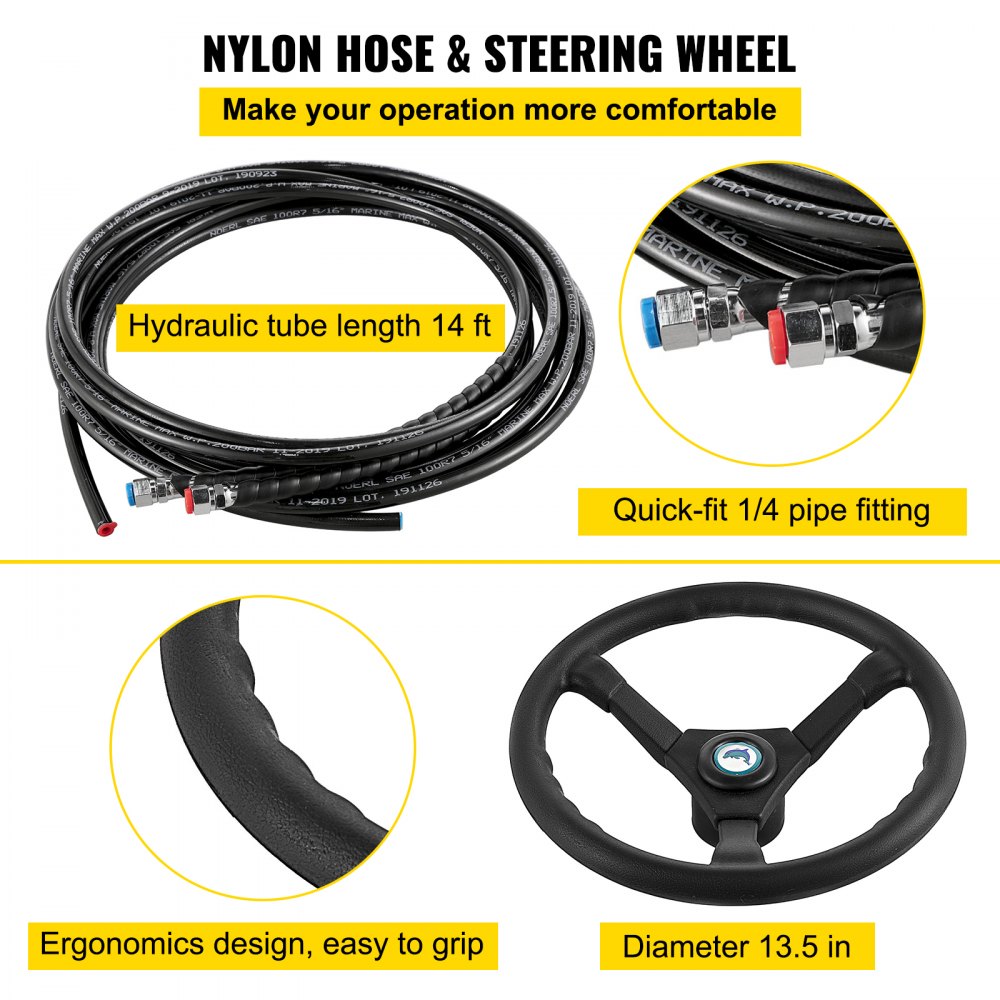

Nylon Hose & Steering Wheel
Our high strength nylon hose with quick-fit 1/4 tube is easy to install. And a non-slip steering wheel ensures smooth operation.
Standard Accessories
This kit comes with two pcs tubes. A plastic tube is attached to the quart bottle, and the other end is screwed into the pump`s filling hole, which assists in bleeding the system.
Wide Application
Suitable for boats up to 60 mph with single outboards up to 300 HP or twin outboards up to 450 hp (non-counter rotating). Twin-engine applications require a tie bar kit.

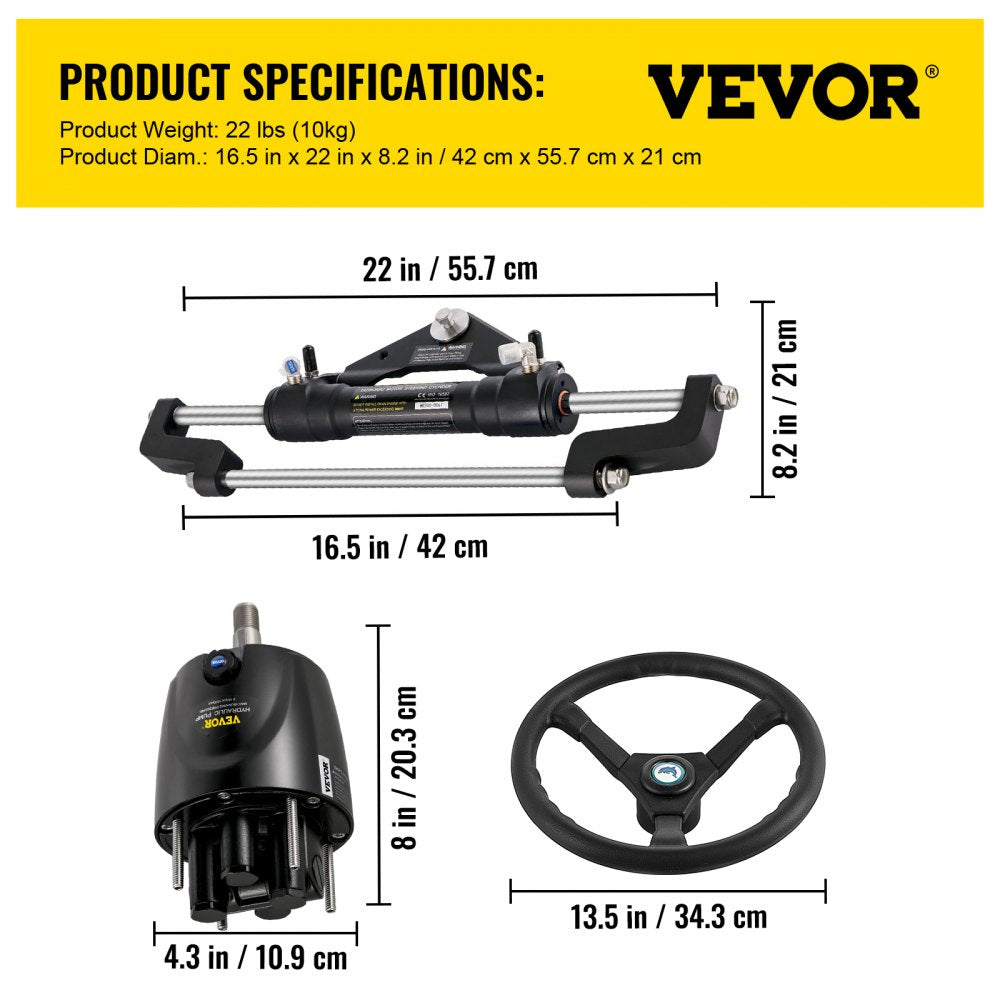

Specifications
-
Model: HK6314A-3 Hydraulic Outboard Boat Steering Kit -
Output Force: 468(KGF) -
Application: Up to 300HP -
Max Pressure: 6.9 Mpa/1000psi -
Hose Length: 14 FT -
Steering Wheel Dia.: 13.5" -
Material: Aluminum Alloy + PVC
Package Content
-
1 x Hydraulic Pump -
1 x Cylinder -
2 x 22 ft Hose -
1 x 13.5" Steering Wheel -
1 x Accessory Kit
